DJI Agras T10 Drone

Available: In Stock
$10,999.00
  • Order within

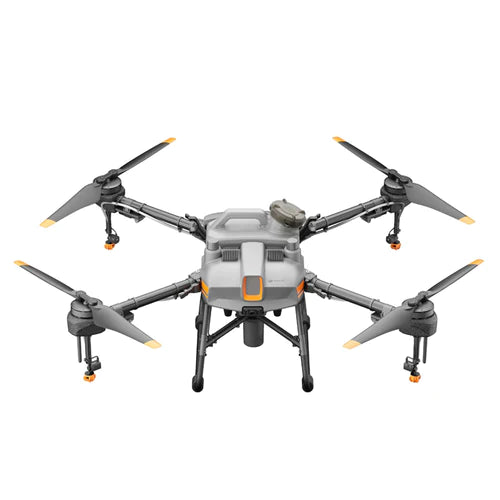

The DJI Agras T10 brings a highly compact-yet-powerful aerial solution to agriculture sites of all sizes and needs. An 8 liter tank and spray width of up to 5 meters allow the aircraft to cover up to 15 acres/hour. [1] Its folding truss structure is sturdy and reliable, enabling efficient folding and unfolding, convenient transportation, and easy transitions.

The DJI Agras T10 brings a highly compact-yet-powerful aerial solution to agriculture sites of all sizes and needs. An 8 liter tank and spray width of up to 5 meters allow the aircraft to cover up to 15 acres/hour. [1] Its folding truss structure is sturdy and reliable, enabling efficient folding and unfolding, convenient transportation, and easy transitions.

Hourly operation efficiency 15 acresHigh-precision radar√ Spherical Omnidirectional Radar SystemRemote control planning precision√ (RTK/GNSS)Removing air from pipes√ One button Air Discharge3D operation planning of the AI engine√High-precision flowmeter√ (Dual-channel electromagnetic flowmeter with an error of ±2%)Level gaugeSingle-point level gaugeMaximum spray flow1.8 L/min (with standard XR11001 nozzle) 2.4 L/min (with optional XR110015 nozzle)Pesticide tank installation methodQuick plugging pesticide tankBattery installation methodQuick plug-and-play batteryOne remote control for multiple drones√ (one remote control for three drones)D-RTK technology√Up-looking radar module√Flight dotting function√Smart cruising/return function√Intelligent supply-point predictionxCoordinated turn function√Forward-looking FPV√Backward-looking FPV√Branch targeting technologyxDrone parametersTotal weight (without batteries)13 kgRated take-off weight24.8 kg (near sea level)Hovering precision (with good GNSS signal)With D-RTK enabled:
±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m)RTK/GNSS frequency bandsRTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1Maximum power consumption3,700 WHovering power consumption3,200 WHovering time19 min (@9,500 mAh & takeoff weight of 16 kg)
8.7 min (@9,500 mAh & takeoff weight of 26 kg)Maximum pitch angle15°Maximum operating flight speed7 m/sMaximum level flight speed10 m/s (with good GNSS signals)Maximum endurable wind speed8 m/sMaximum flight altitude4,500m
*Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude.Recommended operating ambient humidity< 93%Recommended operating ambient temperature0℃ to 45℃Rack parametersMaximum rotor distance1,480 mmDimensions1,958 mm × 1,833 mm × 553 mm (with arms and blades extended)
1,232 mm × 1,112 mm × 553 mm (with arms extended and blades folded)
600 mm × 665 mm × 580 mm (with arms folded)Power system - MotorStator size100×10 mmKV value84 rpm/VMaximum pulling force11.2 kg/rotorMaximum power2,000 W/rotorWeight527 gPower system - PropellersDiameter × pitch33×9 inchWeight (a single blade)92 gPower system - ESCMaximum operating current (continuous)32 AMaximum operating voltage60.9 V (14S LiPo)FPV cameraFOVHorizontal: 129°, vertical:82°Resolution1,280×720 15-30 fpsFPV spotlightMaximum light intensity13.2 lux @ 5-meter direct lightSpraying system - Operation tankOperation tank volume8 L at full loadOperating load8 kg at full loadSpraying system - NozzlesSprayer modelSX11001VS (standard)
SX110015VS (optional)
XR11002VS (optional) Number of sprayers4Maximum spray flowSX11001VS: 1.8 L/min
SX110015VS: 2.4 L/min
XR11002VS:3 L/minDiameter of atomized particleSX11001VS : 130 - 250 μm
SX110015VS : 170 - 265 μm
XR11002VS: 190 - 300 μm
(depending on the actual operating environment, spraying flow and other factors)Maximum effective spray width3 - 5.5m (with 4 sprayers and a distance of 1.5 - 3 meters to crops)Spraying system - Water pumpWater pump modelDiaphragm pumpOperating voltage15 VMaximum flow1.5 L/min ×1Spraying system - FlowmeterFlow measurement range0.25 - 20 L/minFlow measurement error< ±2%Measurable liquidConductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the likeOmnidirectional obstacle avoidance radarModelRD2424ROperating frequencySRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE: 24.05 to 24.25 GHzOperating power consumption12 WEquivalent isotropic radiated power (EIRP)SRRC: < 13 dBm; NCC/MIC/KCC/CE/
FCC:< 20 dBmHeight hold and terrain followingHeight measurement range: 1 - 30m
Height hold range: 1.5 - 15m
Maximum slope in mountain mode:35°Obstacle avoidance systemPerceivable distance: 1.5 - 30m
FOV: 360° (horizontal), ±15° (vertical)
Conditions of use: The relative flight height of the drone is above 1.5m and the speed below 7 m/s
Safe distance: 2.5m (the distance between the tip of the blade and the obstacle after the drone is braked and hovering stably)
Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidanceProtection classIP67Up-looking radarModelRD2414UOperating frequencySRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE:24.05 to 24.25 GHzOverhead obstacle avoidancePerceivable distance: 1.5 - 10m
FOV: 80°
Conditions of use: The drone flies for a relative distance over 1.5 m in the mode of take-off, landing and route climb mode
Safe distance: 2m (the distance between the obstacle and the highest point on the top of the drone)
Obstacle avoidance direction: Above the droneProtection classIP67Equivalent isotropic radiated power (EIRP)SRRC:< 13 dBm;NCC/MIC/KCC/CE/
FCC:< 20 dBmOperating power consumption4 WBatteryModelBAX501-9500mAh-51.8VWeightAbout 3.8 kgDischarge rate11.5CProtection classIP54 + board-level embedment protectionCapacity9,500 mAhVoltage51.8 VRemote controlModelRM500-ENTOperating frequency of OcuSync 2.02.4000 to 2.4835 GHz
5.725 to 5.850 GHzEffective signal distance of OcuSync 2.0 (without interference and blockage)SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating height of 2.5m)EIRP of OcuSync 2.02.4 GHz
SRRC/CE/MIC/KCC: 18.5 dBm;
FCC: 29.5 dBm;
5.8 GHz
SRRC: 28.5 dBm;
FCC: 20.5 dBm
CE:12.5 dBmWi-Fi ProtocolsWi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supportedWi-Fi operating frequency2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 ~ 5.850 GHzWi-Fi EIRP2.4 GHz
SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm;
5.2 GHz
SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
5.8 GHz
SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;Bluetooth protocolBluetooth 4.2Bluetooth operating frequency2.4000 to 2.4835 GHzBluetooth EIRPSRRC/MIC/FCC/CE/KCC:6.5 dBmPositioningGPS + GLONASSDisplay5.5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and Android OSOperating memory (RAM)4GB LPDDR4Storage space (ROM)32 GB + scalable storage space, and a microSD card with the capacity up to 128 GB and transfer speed of UHS-I Speed Grade 3 is supportedHDMIHDMI 1.4Supported dronesT30 and T10 crop protection dronesOperating power consumption18 WOperating ambient temperature-10℃ to 40℃Storage ambient temperature-30℃ to 60℃ (within 1 month)
-30℃ to 45℃ (1 to 3 months)
-30℃ to 35℃ (3 to 6 months)
-30℃ to 25℃ (more than 6 months)
(with the capacity of built-in batteries at 40 to 60%)Charging ambient temperature5℃ to 40℃Built-in battery of remote controlBuilt-in battery18650 lithium ion battery (5,000 mAh at 7.2V)Battery life2 hoursCharging methodStandard 12V/2A USB quick chargerCharging time2.5 hours (with the standard 12V/2A USB quick charger and the remote control powered off)Power supply current/voltage of remote control USB-A port5 V / 1.5 AExternal smart battery of remote controlModelWB37-4,920mAh-7.6VBattery type2S LiPoCapacity4,920 mAhVoltage7.6 VCapacity37.39 WhCharging ambient temperature5℃ to 40℃Battery life2 hoursExternal smart battery charging manager of remote controlModelWCH2Input voltage17.3 - 26.2 VOutput voltage and current8.7V and 6AOperating ambient temperature5℃ to 40℃Power adapter of external smart battery charging managerModelA14-057N1AInput voltage100 to 240V and 50/60 HzOutput voltage17.4 VRated power57 WT-Series Distribution System 3.0 (10kg)Weight of distribution system3.1kgMaximum opening area44.6 cm²Applicable materialsDry solid particles with a diameter of 0.5 to 5 mmVolume of distribution tank12LMaximum internal load of distribution tank10kgProtection classIP67Input voltagePower: 60V
Control:15VMaximum power60V@250W
15V@50WRecommended operating ambient temperature0℃ to 40℃Dimensions405×245×375mmMaximum rotation speed1,300 RPMT10 smart charging managerDimensions300×280×230 mmTotal weight8.1 kgInput voltage100-264 VacOutput voltage40-60 VRated power3,600 WCharging current50 ACharging time7 to 10 minCharging voltage precision+/-0.1 VCharging current precision+/-1 ANumber of output channels2Protection functionsOver-temperature, over-voltage, under-voltage, short-circuit, and fan stall protectionCharging ambient temperature-20℃ to 45℃Charging safetyAC wire protection, power wire protection, and charge connector protection

  • Аgrаѕ Т10 (Wіth Ѕрrауіng Ѕуѕtеm аnd Рrореllеr Ноldеrѕ) х1
  • Іntеllіgеnt Flіght Ваttеrу x1
  • Іntеllіgеnt Сhаrgеr х 1
  • Rеmоtе Соntrоllеr x 1
  • WВ37 Rеmоtе Соntrоllеr Іntеllіgеnt Ваttеrу х 1
  • Іntеllіgеnt Ваttеrу Сhаrgіng Нub х 1
  • Rеmоtе Соntrоllеr Lаnуаrd х 1
  • Роwеr Аdарtеr х 1
  • АС Роwеr Саblе х 1
  • 4G Dоnglе х 1
  • UЅВ Сhаrgеr х 1
  • UЅВ-С Саblе х 1
  • Аѕѕеmblу Тооlѕ
  • Ѕраrе ѕсrеwѕ, nutѕ, аnd оthеr ассеѕѕоrіеѕ
