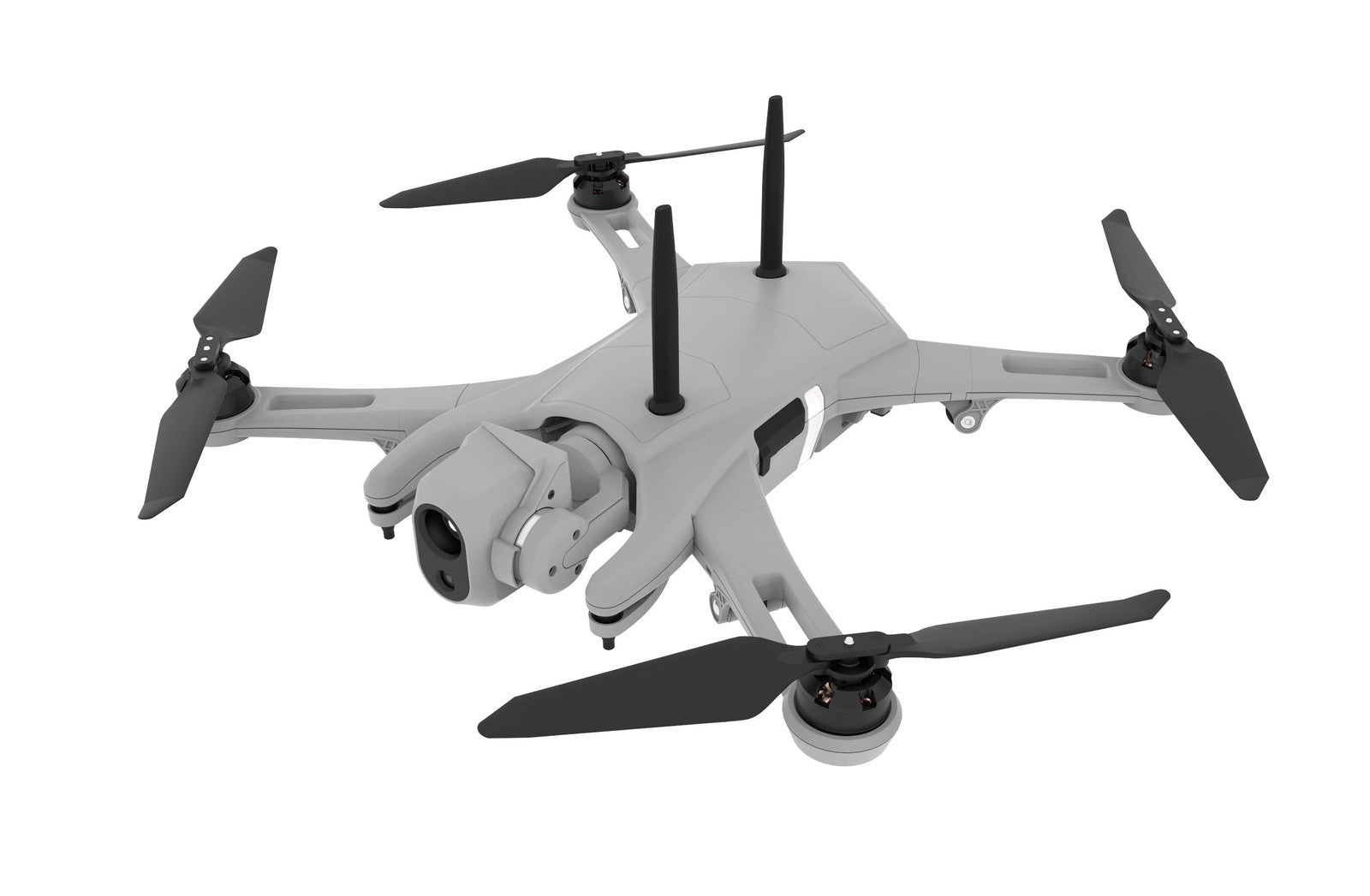

Teal 2 sUAS Drone System 2.4Ghz with FLIR Hadron 640R EO/IR Payload
- Order within
TEAL 2
Rugged, Secure, and Optimized for Nighttime Operations
|
Secure & encrypted communication |
High endurance & long range |
Equipped with the FLIR Hadron 640R EO/IR payload |
|
Multi-vehicle command & control |
Fast to deploy and stow |
Maximum flight time: 30+ minutes |
Teal 2 is an American-made, secure sUAS with Electro-Optical & Infrared Sensors, and onboard computing built for nighttime missions.
Dominate the Night with the Teal 2
Developed under strict design guidelines established by the U.S. Department of Defense, Teal 2’s primary application is short-range reconnaissance missions. Combat soldiers, police officers, firefighters, wildlife managers, and industrial inspectors can rely on the Teal 2 to achieve mission success.
Fly Intelligent Missions at Night
Get Ready for Your Missions with a Compact & Rugged Drone. Teal 2's compact size and rugged design enables the system to be rucksack portable and deployed in the most challenging environments.
Increase Visibility in Challenging Scenarios
The Teal 2 sUAS, equipped with Teledyne FLIR’s new Hadron 640R sensor, provides end users with the highest resolution thermal imaging in a small (Group 1) form factor and is optimized for nighttime operations.
Electro-Optical (EO) Sensor: Convert light or changes in light into electronic signals for full visibility.
Infrared (IR) Sensor: Identify targets, track movement, and assess threats more easily.
Enhance Your Missions with Advanced Thermal Imaging Technology
Teal 2 provides complete-visibility heat signatures with a full range of thermal palettes that let you see what others can't. From White Hot to Arctic, the drone's color palettes allow drone pilots to obtain a high level of detail, quickly detect sources, identify thermal anomalies, and more. Optimize your operations with the game-changing capabilities of Teal 2's thermal heat signatures.
TEAL 2
Rugged, Secure, and Optimized for Nighttime Operations
|
Secure & encrypted communication |
High endurance & long range |
Equipped with the FLIR Hadron 640R EO/IR payload |
|
Multi-vehicle command & control |
Fast to deploy and stow |
Maximum flight time: 30+ minutes |
Teal 2 is an American-made, secure sUAS with Electro-Optical & Infrared Sensors, and onboard computing built for nighttime missions.
Dominate the Night with the Teal 2
Developed under strict design guidelines established by the U.S. Department of Defense, Teal 2’s primary application is short-range reconnaissance missions. Combat soldiers, police officers, firefighters, wildlife managers, and industrial inspectors can rely on the Teal 2 to achieve mission success.
Fly Intelligent Missions at Night
Get Ready for Your Missions with a Compact & Rugged Drone. Teal 2's compact size and rugged design enables the system to be rucksack portable and deployed in the most challenging environments.
Increase Visibility in Challenging Scenarios
The Teal 2 sUAS, equipped with Teledyne FLIR’s new Hadron 640R sensor, provides end users with the highest resolution thermal imaging in a small (Group 1) form factor and is optimized for nighttime operations.
Electro-Optical (EO) Sensor: Convert light or changes in light into electronic signals for full visibility.
Infrared (IR) Sensor: Identify targets, track movement, and assess threats more easily.
Enhance Your Missions with Advanced Thermal Imaging Technology
Teal 2 provides complete-visibility heat signatures with a full range of thermal palettes that let you see what others can't. From White Hot to Arctic, the drone's color palettes allow drone pilots to obtain a high level of detail, quickly detect sources, identify thermal anomalies, and more. Optimize your operations with the game-changing capabilities of Teal 2's thermal heat signatures.
- AIRCRAFT
- Flight Time: 30+ minutes*
- Weight: 2.75 lbs (1.25 kg)
- Flight Speed: 10 m/s (23 mph)
- Max Flight Ceiling: 10,000 ft (3048 m) MSL
- Max Range (From Controller): 3.1 Miles (5 km)
- Operation Temp Range: -32 to 110 F (-35.6 to 43.3 C)
- Flight Controller: MAVLink Compliant
- Wind Limits: 18 mph (16 kn) Sustained to 25 mph (22 kn) Gusts
-
TEAL AIR CONTROL (TAC) - Downlink Resolution: 720p
- Encryption: AES-256
- Latency: ~300ms
- Software OS: Android
- Battery Life: 6 hours
- Weight: 3.7 lbs (1.68 kg)
- SENSOR
- System: Dual Axis EO/IR Gimbal with Hadron 640R
- EO Sensor: 16MP, 67 degree HFOV
- EO Video Recording: 4000x3000 at 15fps
- Gimbal Pitch Control Range: -120 to +120
- IR Sensor: Boson 640 Radiometric, 32 degree HFOV
- IR Video Recording: 640x512 at 30Hz
- Removable Storage: microSD Card
- Recorded Video Format: MP4 and Transport Stream
-
PROCESSOR - Main Processor: Snapdragon 845
- GPU: Adreno 630
- CPU: Octa-core Kryo 385
- Image Signal Processor: Spectra 280
- Memory: 6GB LPDDR4X
*US Standard Atmosphere 1976, which is 59F, Sea Level, 29.92 Barometric Pressure
- TEAL 2 SYSTEM - 2.4GHz Includes:
- (x1) Teal 2 2.3GHz with Hadron Payload with 16MP EO and 640x512R IR
- (x1) Teal Air Controller (TAC)
- (x2) battery/charger kits (ea kit includes 1 charger & 2 batteries)
- Teal 2 Transport Case
- Teal 2 Tactical Cases
- (x1) Field Repair Kit (tools, (x2) rotor arms, (x1 set) propellers, Micro SD card)
- (x1) Quick Start Guide
